DESCRIPTION

Basic Info

Product Description

Description

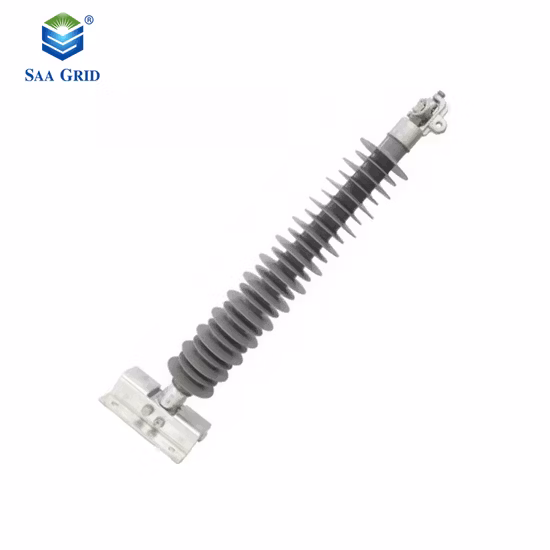

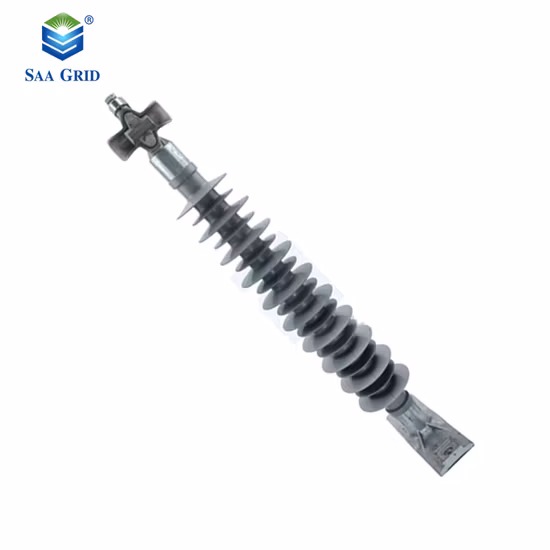

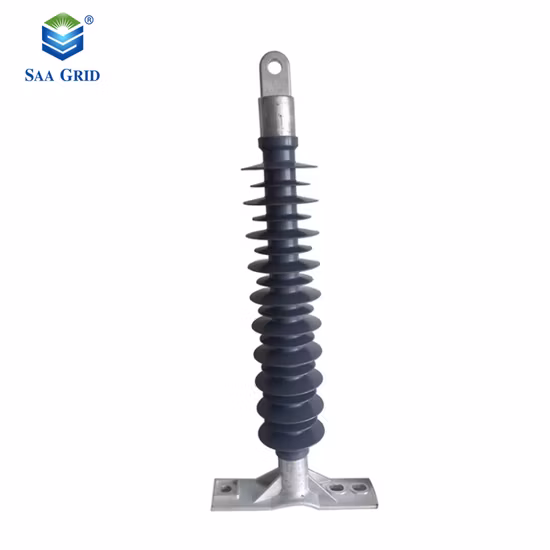

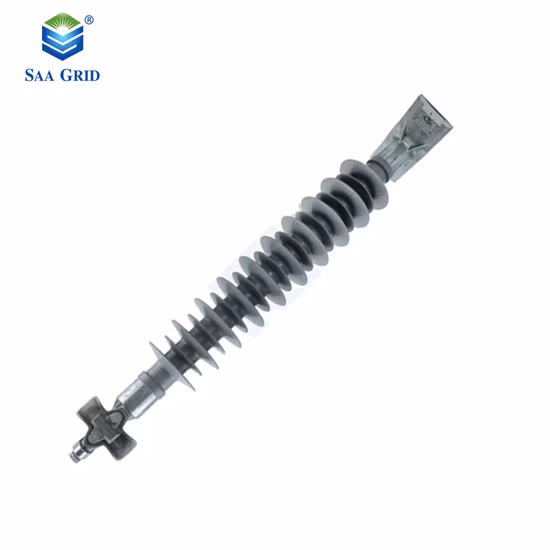

• Application: Fixed to iron cross arm to support conductors and provide mechanical load and insulation;
• Color: Red, Brown, Gray or Customer's requirement;
• Applicable Standard: IEC, GB, BS, ANSI, AS or Customer's requirement;
• Tube: Fiber glass core;

•

  Rated System Voltage (kV)	Type	Section Length (mm)	Arcing Distance (mm)	Creepage Distance (mm)	Specified Cantilever Load (kN)	Specified Tensile Load (kN)	Lightning Impulse Withstand Voltage (kV)	Power Frequency Withstand Voltage (kV)
  								Dry	Wet
  10	FZS-10/5	215	125	290	5	70	75	35	28
  35	FZS-35/5	620	480	1200	5	70	265	125	100
  35	FZS-35/8	620	480	1200	8	70	265	125	100
  66	FZS-66/5	830	630	1800	5	70	410	230	185
  66	FZS-66/8	830	630	1800	8	70	410	230	185
  110	FZS-110/5	1270	1025	2900	5	70	550	285	230
  110	FZS-110/10	1270	1025	2900	10	70	550	285	230
  10	FPQ-10/3	285	205	450	3	10	110	50	40
  10	FPQ-10/5	285	205	450	5	10	110	50	40
  Order Information: 1.Voltage grade;2.Specified mechanical load; 3.Creepage distance;4.Power frequency withstand voltage;5.Lightning Impulse Withstand Voltage;6.Insulation distance;7.Coupling type Ps. Different design could be supplied as customer requirements
