DESCRIPTION

Basic Info

Model NO.	EDP
Breaking Capacity	Low Voltage Circuit Breakers
Operation	Electric Type
Speed	High-Speed Circuit Breaker
Arc-extinguishing Medium	Vacuum
Installation	Fixed
Structure	SPD
Poles Number	3
Type	Surge Protector Device
Function	Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection), RCCB
Certification	VDE, ISO9001-2000, CE, CB, CCC
Transport Package	Box
Specification	plastic
Trademark	Onccy
Origin	China

Product Description

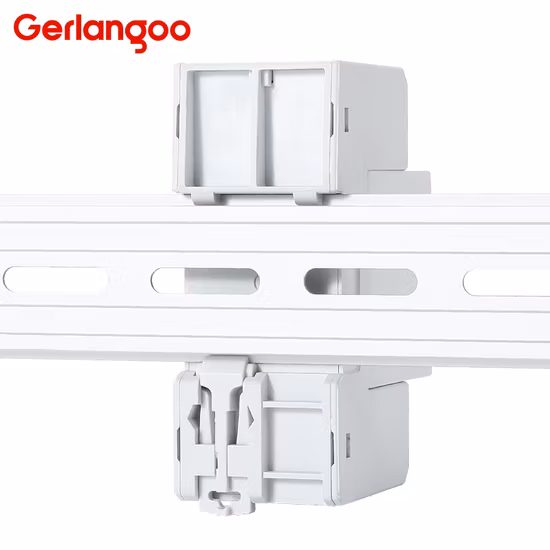

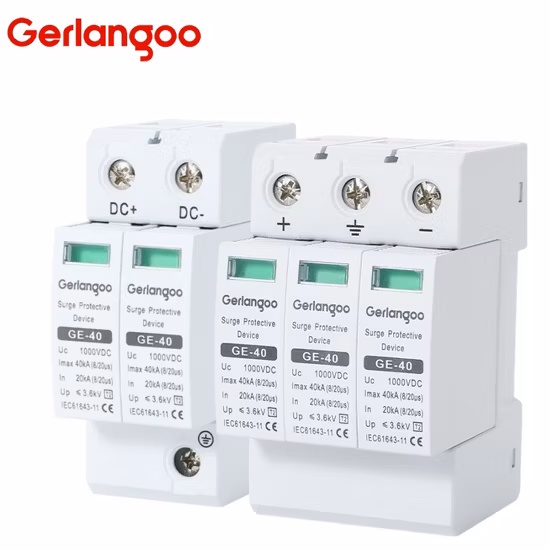

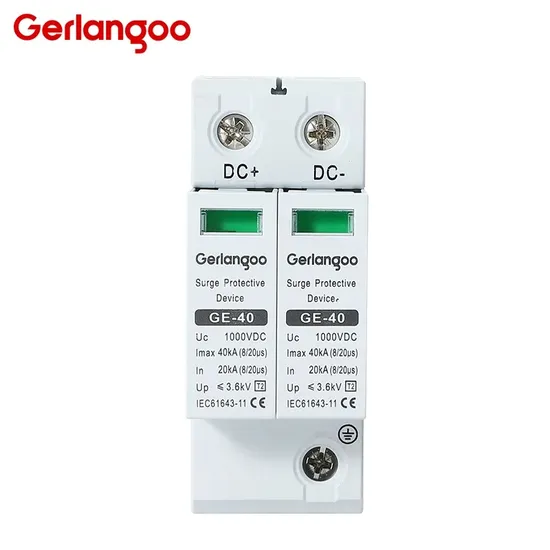

Surge Protector T2 3p 1000V 40ka DC Solar Surge Protective Device

A global leader in overvoltage protection devices, ASwich offers a comprehensive line of Surge Protective Devices (SPD) , components, and systems.Aswich Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor featuring . UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, small footprint, and a 40kA surge capacity.

Product Benefits

• No need to consider the load current, plug design, can be replaced live, easy to maintain.
• Internal steal temperature control circuit breaker technology, high safety performance, no freewheeling.
• Green indicates normal, red indicates fault, prompt replacement, clear and easy to distinguish.
• Remote monitoring interface (dry contact) is provided to realize remote monitoring of working status.

Technical Data

Product model		EDPG40-2 (R)	EDPN40-3 (R)	EDPT40-3 (R)
IEC Electrical
Maximum Continuous Operating DC Voltage (DC+) - PE, (DC-) - PE (DC+) - (DC-)	UCPV	600V	1010V	1500V
	UCPV	-	1010V	1500V
Nominal Discharge Current (8/20 μs)	In	20kA
Total Discharge Current (8/20 μs)	I Total	40kA
Maximum Discharge Current (8/20 μs)	Imax	40kA
Voltage Protection Level (DC+) - PE, (DC-) - PE (DC+) - (DC-)	Up	2200V	4000V	5200V
	Up	-	4000V	5200V
Response Time	tA	<25ns
Short-Circuit Current Rating	I SCPV	2000A
Number of Ports		1
Mechanical & Environmental
Operating Temperature Range	Ta	-40oF to +158oF [-40oC to +70oC]
Permissible Operating Humidity	RH	5%…95%
Atmospheric pressure and altitude		80k Pa … 106k Pa / -500m … 2000m
Terminal Screw Torque	Mmax	39.9 Ibf·in [2.0~2.5 N.m]
Conductor Cross Section (max)		2 AWG (Solid, Stranded) / 4 AWG (Flexible)
		35 mm2(Solid, Stranded) / 25 mm2 (Flexible)
Mounting		35 mm DIN Rail, EN 60715
Degree Of Protection		IP20 (built-in)
Housing Material		Thermoplastic: Extinguishing Degree UL 94 V-0
Thermal Protection		Yes
Operating State / Fault Indication		Green ok / Red: failure
Remote Contacts (RC)		Optional
RC Switching Capacity		AC:250V / 0.5A;DC:250V / 0.1A;125V / 0.2A;75V / 0.5A
RC Conductor Cross Section (max)		16 AWG (Solid) / 1.5 mm2(Solid)
